Architecture¶
Software packages¶
The backend and frontend is released with the following python packages:
- adhocracy_core
- framework and generic rest api, admin frontend
- adhocracy_sample
- examples how to customize resource/sheet types
- adhocracy_frontend
- framework for the javascript frontend
- adhocracy_xyz
- Backend extensions for project specific application
- xyz
- projects specific application with javascript frontend
Frontend Technical Admin Interface (substanced)¶
| HTML Admin interface | Technical admin interface (serverside rendering) |
| Authentication Cooky | Authentication based on cookies and session id. |

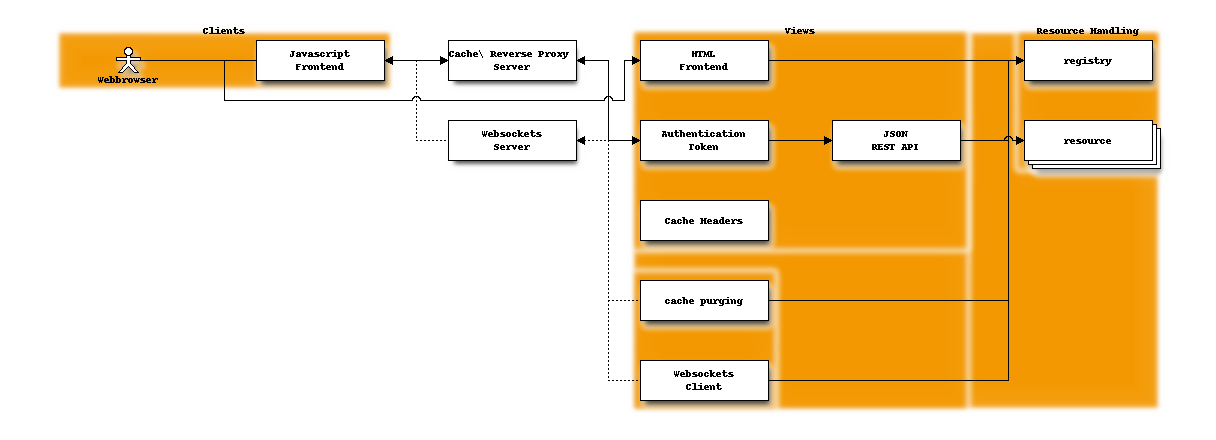

Frontend Javascript (Single Page Application)¶
| Javscript Frontend | Single Page Application (client side rendering) |
| Cache Proxy | Proxy to cache http requests (varnish) |
| Cache Headers | Set http caching headers, compute etag) |
| Cache Purging | Send purge request to Cache server when resources are updated |
| Authentication Token | Authentication based on request header token. |
| REST API | JSON representation of resources to Create/Read/Update/Delete. |
| HTML Frontend | HTML representation of resources (only root, serves javascript/settings/routings) |
| Websockets client | Send notification mesages to the websockets server when resources are updated |
