Concept: The Supergraph

Our Terminology

node

Building blocks of Adhocracy participation processes. Examples: “document”, “user”, “likes”, “vote”, etc. Nodes can connect to other nodes using references (see below). They are implemented as python objects.

reference

A reference connects a source node to a target node. References have a specific label, like: “contains”, “has_author”, etc. There a two basic types:

• reference-to-one: References which exist only once
• reference-to-many: References exists zero to many times

What constitutes a node and what constitutes a reference is a design decision made on the content design level.

It is often convenient to talk about nodes as vertices and references as edges in a graph.

References are implemented as python attributes containing object references. (The term “reference” exists both on the data model level and on the implementation level.) A reference can either connect to a target node, or to a container of target nodes (list, set, ...).

essence

Some references are “essential” to a source node, and some are not. The essence of a node is the total of all nodes in the transitive hull of all essential references (i.e. all target nodes of essential references, and all targets of the essential references of those target nodes, and so on).

The concept of essence is important for change management and will be discussed in detail below. The idea is that if a node Y is in the essence of node X, and Y changes, X “naturally” changes with Y.

dependents

The inverse essence of a node up to reflexivity: A node X is a dependent of Y if Y is in the essence of X, but not X itself.

content node

A node that is self-contained, i.e. it has no outgoing references. (Content nodes are the leaves of the reference graph.)

follows

Change management is implemented by follows edges between nodes. A node that changes in fact is copied into a new version that follows the previous version. follows edges are NOT references (neither on the design level nor on the implementation level).

head A node without outgoing follows edges

fork A node with more than one outgoing follows edges.

merge A node with more than one incomming follows edges.

relation

A pattern of references and nodes that have a certain meaning. (See below for examples.)

Non-Mutability

Note

This section describes rules and properties that we define for adhocracy core. They are not enforced by the underlying db.

The properties contained in a node don’t change after creation of the node. The same goes for properties of references. Also, created nodes and references don’t ever get deleted.

The set of outgoing references from a node is not allowed to change. The set of incoming references can change. This also means that a reference from A to B implies that A is younger or equally old than B.

Some Intuition

Imagine you have a node, transitively follow all its outgoing references and collect all the resulting nodes. This gives you the node’s essence. Usually, this will result in a tree of nodes. A reference means (as defined above) that the referenced nodes are an “essential part” of the referencing node. So our tree of nodes is something like a deep-copy and recursively includes all the essential parts of our root node.

(Cycles using references are also allowed, so you might not get a tree, but a sub-graph. This sub-graph will still be a deep-copy in the described sense.)

Versioning

As existing nodes in the graph never change, every node modification creates a new node which is connected to the originating node with a follows relation. (We haven’t decided how to implement this follows relation – it might be a reference or a node. In the following example graphs the follows relation is represented by a dashed arrow.)

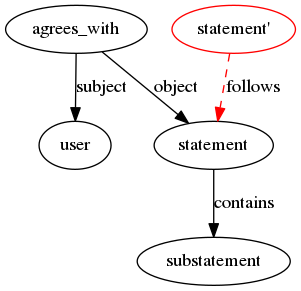

Example 1.0:

The outgoing references will be copied automatically to point to the old referred nodes.

Example 1.1:

Incoming references have to be treated specially:

Nodes that are the dependents of the modified node are marked with a pending marker.

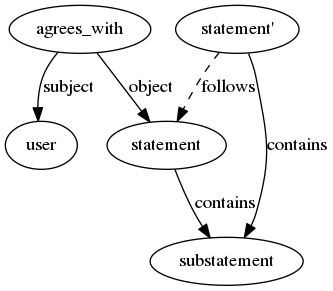

Example 1.2:

These nodes are notified and have three options:

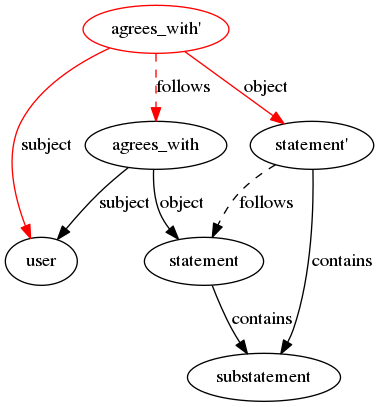

• They can confirm the changeset. This means they will be copied and their outgoing references will point to the new versions of the referred nodes. The old version will leave the pending state.

  Example 1.3:

• They can reject the changeset. This means, they will leave the pending state, but no new nodes nor references get created. The outgoing references of the formerly pending node will not change and point to old versions of nodes.

  Example 1.4:

• They can do nothing and keep the pending state. At any later point in time a node can reject or confirm a changeset, probably triggered by some external event, e.g. user interaction.

Forking and merging

Modeling versioning in this manner also allows for forking and merging:

Example 2.0:

Deletion

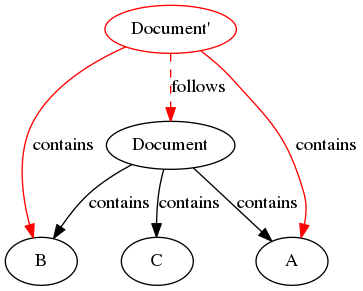

In many cases, deletion can be represented in the graph by modifying a referring node and remove some outgoing edges. It is not necessary to delete the referred node.

Example 3.0:

In other cases, it might be necessary to directly delete a node. For this case a special deleted node is introduced:

Example 3.1:

PROPOSAL: Not sure if this is already the intention, but it might be enough to have just one universal DELETED node (or NULL node) in the whole graph. The DELETED node follows all nodes that have been deleted (multiple predecessors). Any node that has been deleted points to the DELETED node as its successor.

History manipulation

In some cases it might be necessary to modify or delete existing nodes and references directly, bypassing the versioning mechanism. This violates the non-mutability property and can be seen as a manipulation of the version history.

These manual modifications of the graph have to be done very carefully and could be considered as administrative tasks.

A typical example for such an administrative task is the real deletion of a node containing illegal content.

Relations

We defined relations as a pattern of nodes and references that have a specified meaning. Here is an example of a very simple relation:

Example 5.0:

This comments relation captures the idea, that SomeComment comments on A. Also, the direction of the used reference implies, that A is an essential part of the comment.

Here is another example of a slightly more complex relation:

Example 5.1:

This relation captures the fact, that SomeUser likes B. Again the directed references imply something about the nodes: SomeUser and B are essential parts of this likes node.

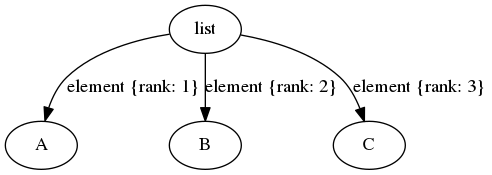

Here is how you could model a list:

The list relation allows you to store an ordered sequence of nodes. Again the direction of the used references implies that the elements are essential parts of the list.

Modelling Data by Relations

The process of modelling your data is basically a process of defining relations. When defining a relation you always have to think about the direction of the used references. Here’s a checklist that might help:

If you define a relation where A refers to B in some manner, then the following should hold:

• It makes sense that B is an essential part of A.

• A modification of B (creating a newer version B') potentially leads to a newer version of A (A') by triggering an update notification. The class of A should know how to handle such an update notification: immediate automatic confirmation, immediate automatic rejection or keeping the pending state and taking means to gather a manual decision.

• No other nodes want to refer to the reference itself. If you want to be able to refer to something, you have to model it as a node. If you want to refer to the relation between A and B in our example, you have to add an additional node:



  This way you still retain the idea that B is an essential part of A.

• Look out for reference cycles. If you define relations that make reference cycles very likely, you should reconsider your modelling. The supergraph allows reference cycles, but they certainly smell bad. (See conjoined_nodes.)

Note

Nodes and relations are the means you have to model your data. Don’t fall back on simple vertices (not nodes) or simple edges (not relations) for this.

A Common Pitfall

If you model binary relations (something along the lines of “subject predicate object”), it’s tempting to model the predicate as a single reference:

However make sure this is really what you want: Is object an essential part of subject? If not, you have to change this to:

A non-exhaustive list of relations

Follows

This is the relation used to connect nodes to its predecessor or predecessors. This might be modelled like this (we are still undecided on this):

Deletions

Node deletion is realized as a unary relation connected to the deleted node.

Predicates

Predicates are classical subject-predicate-object relations (also called binary relations), expressible as a verb.

Example: comments

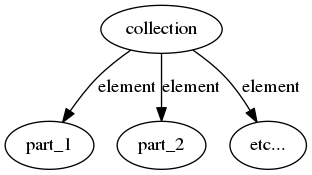

Collections

Collections contain parts.

Implemented as a list vertex with references-to-many to parts

Example: Set, List

Lists

Ordered collections.

Implemented as a collection with ranked edges.

Example: Document

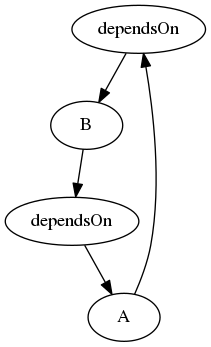

Conjoined Nodes

Nodes which essentially belong to each other. Once one node is updated, the other node has to be updated too and vice versa - the nodes are synchronised. This can be achieved through cyclic subgraphs.

Possible examples: Translations, Binational treaties.

More complex relations

Example: Some discussion leads to a set of (proposed) changes.

Implementation Notes

This paragraph is a summary of the data structure discussions on Fri 2013-07-19 and before. The later sections are obsolete to a varying extent.

Nodes are implemented as python objects, references as attributes. In addition to the attributes, there is a method:

refs(): { <attr> : <node> }

that returns a dictionary mapping python strings containing attribute names to the resp. reference target nodes. This is interesting because not all attributes of the node object are references.

The dependents (inverse references, i.e. only direct dependents) are represented by a method:

deps(): { <node> : { <interface> : [ <attr> ] } }

that returns a dictionary mapping nodes to dictionaries, which in turn map interfaces to lists of reference names (references are implemented as attributes containing python references).

This way, it is easy to ask an object which other objects are referencing it.

Alternatively dependents could be implemented as:

deps(): [ (<node>, <interface>, <attr>) ]

There should probably also be transitive hulls for references and dependents, e.g. trans_refs() and trans_deps(), which can be implemented easily in terms of the above methods. (XXX: is it more pythonic to say “function” instead of “method”?)

Change management is modelled by nodes being copied into follows nodes. There is a number of meaningful and desirable ways in which references can react to changes in referenced and dependent nodes.

If a reference is essential, the target must notify the source of the reference. The source then has three options:

• create a new version itself, keep the old reference unchanged, and update the reference in the new version to point to the new version of the target. Example: if a paragraph in a document has been updated, the document should be considered updated as well.
• ask the user what to do about the change. Example: If a user “likes” a node, and the node changes, the user should be able to decide whether she also likes the new version, or only the previous version.
• ignore the change, keep the reference pointed to the old version of the target, and do nothing. Example: Change suggestions: a user wants to express that she would support a proposal if some changes are made. This change suggestion refers to one version of the proposal and shouldn’t be updated to newer versions.

If a reference is not essential, things get more complicated. The source node will still be notified of any change in any target (it always is for all references), but it has more freedom of choice in what to do, and with that comes more confusion. Example:

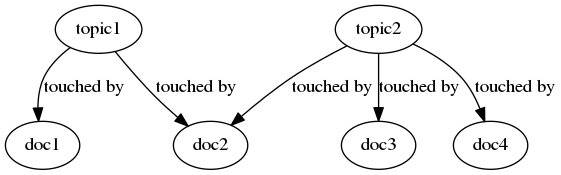

If topics (in wikimedia-speak: categories) are modelled this way, neither of the options of essiential references are desirable, because we would always create a new follower node of any topic that touches any document that has a new version. We either want to reference only the head of each document, and always update all references whenever documents are updated, or we want to reference all versions in the history of the document. (If we only reference heads, then what happens if somebody keeps badges or comments or whatnot on the old version, refusing to update? Then the old document, still referenced by the comment, falls out of the topic category. Hum. I think topic references would need to be copied, not moved. This would cause a lot of references. Perhaps references should be modelled the other way round, not as “touched by”, but as “touches”. But I digress.)

But if we simply keep track of the head of each document, what happens with forks? In a naive implementation, only the head created earliest would keep the topic, and all forks would miss it, because the node from which they fork would have passed on the reference to the follower already.

Disallowing target node forks may be sometimes an option, but in this case it is not. So there has to be another notification event: If a node is forked (has one or more followers already, and gets another one), all follower nodes are traversed, and all dependents of those nodes are notified of the fork.

The dependents can then decide what to do. In the topic model above, the topic node has to visit the new head and reference it as well, without killing the old reference. In other cases, it may raise an exception and thereby disallow forks in target nodes.

This means that some node types are forkable and others are not. Nodes therefore need an attribute:

forkable : bool

Because essential edges guarantee immutability of target nodes, they are to be preferred over non-essential nodes when modelling application data. The following model:

(Essential egdes are blue.)

has a non-essential edge, i.e. the clear update rules of essentiality do not apply when the user updates her email address. The following model gets by with only essential edges:

XXX: Isn’t change management of graph data structures a problem that somebody has figured out on a theoretical level yet?
